Ground Penetrating Radar Model Results


Please forgive the disjointed feel of this page. It was done to quickly record/document these results.

These are the results from an updated model of our GPR system.



The model accounts for:

The model was created by putting square pulse and delta functions at the appropriate x-y-z coordinates. Signals were then generated from those functions .

The first row of images represents this "physical" image.

This "physical" representation was then convolved with the "impulse" signal (measured from the actual system).

This convolution generated the signals the radar would actually perceive.

Three forms of digital processing were performed on the images:


NOTE: In the following images color signifies amplitude. The red end of the spectrum denotes lower values and the blue denotes higher values.

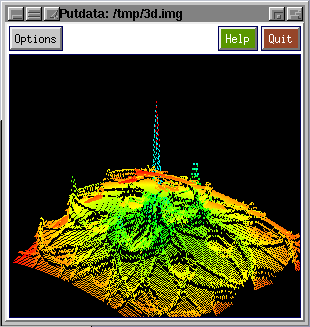

Simulation Input data x-y plane vs amplitude 40 degree view

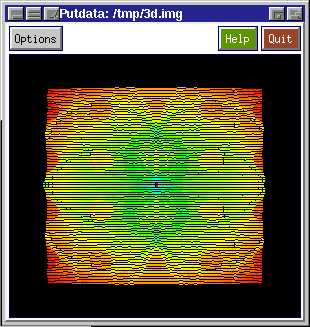

Physical model - Delta & Step Functions, Path Loss

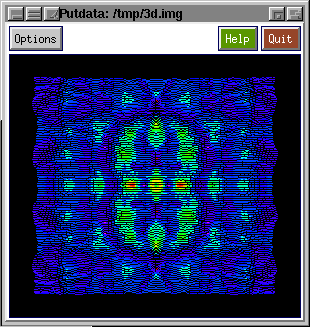

Model as observed with the radar signal - No processing
No significant image

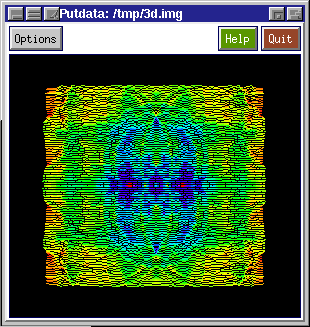

Model w/t radar signal - Absolute value (ABS)
No significant image

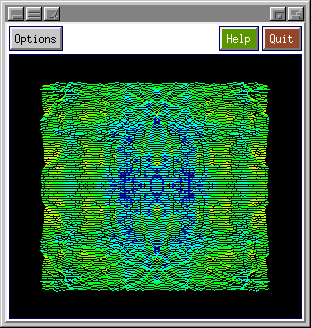

Model w/t radar signal - ABS and Normalized for path loss (Normal)
No significant image

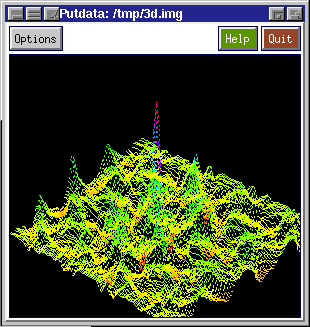

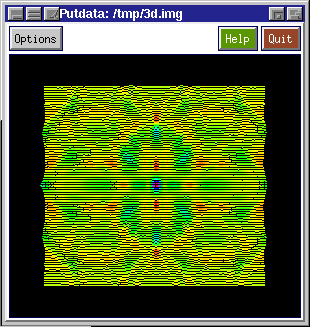

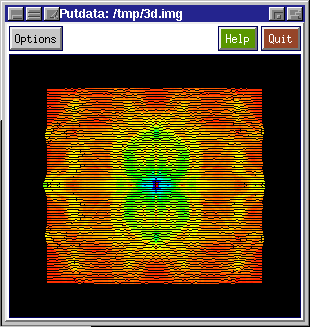

Model w/t radar signal - Match filtered (Corr)

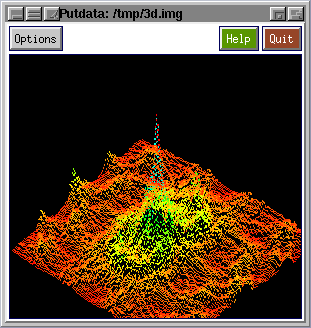

Model w/t radar signal - Corr, ABS

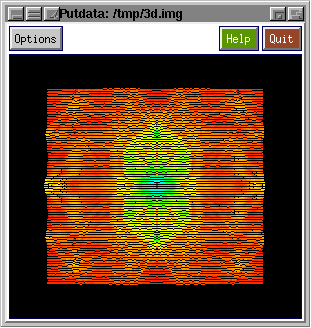

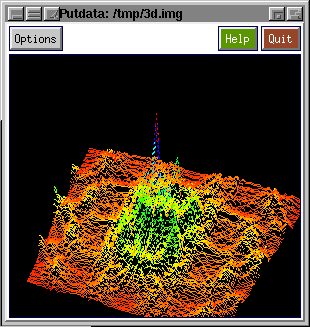

Model w/t radar signal - Corr, ABS, Normal


Click here to see our GPR detect sand (a non-metalic substance).

Click here to see our GPR real world results.

Click here to see the time domain data that generated those results.


Initial work by Bill Sunlin and Brian Hunt
Current model, implementation, exploitation and results by Donald Kerns
3D-Plots generated using Khoros by Khoral
